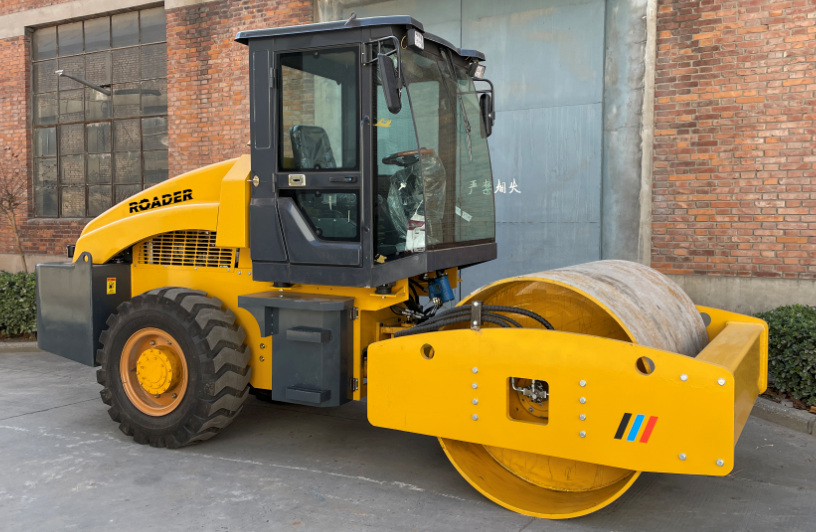

Road Roller Inspection Guide: Ensuring Performance & Safety in Compaction Equipment
Road rollers are essential for constructing highways, runways, and foundations. Unlike wheel loaders or excavators, rollers operate in repetitive, high-vibration environments that accelerate wear. A thorough inspection before purchase prevents costly downtime and ensures compaction quality. This guide covers everything from documentation to vibration system testing for single-drum, tandem (double-drum), and pneumatic tyre rollers.
1. Documentation & Service History Verification
-
Ownership & serial numbers – Verify the VIN or product identification number (PIN) on the data plate matches registration documents. Mismatches may indicate stolen or rebuilt equipment.
-
Hour meter integrity – Compare dashboard hours with service records. For modern rollers, a diagnostic scan can read ECU-stored hours. Discrepancies confirm tampering.
-
Maintenance records – Look for regular engine oil, hydraulic oil, and vibration system oil changes. Check if the drum bearings have been greased at recommended intervals (typically every 100-200 hours).
-
Emissions compliance – For Tier 4 Final / Stage V machines, verify that the aftertreatment system (DPF, SCR) has no active faults and that maintenance has been performed correctly.
2. External Walk-Around & Structural Inspection
Drum (for single-drum or tandem rollers) – The drum is the most critical component. Inspect for:
-
Scrapers – Rubber or steel scrapers should contact the drum evenly. Worn or missing scrapers allow material buildup, causing uneven compaction.
-
Drum surface – Look for pits, cracks, or welding repairs. A cracked drum is expensive to replace.
-
Eccentric weight housing – On vibratory rollers, check for oil leaks around the exciter housing. Leaks indicate seal failure or bearing wear.
-
Drum bearings – Lift the drum slightly (use a jack) and check for radial play. Excessive movement (>2mm) means bearing replacement is needed.
Tires (pneumatic tyre rollers) – Check tyre pressure (uneven pressure causes uneven compaction). Inspect tread depth – worn tyres reduce traction and create an uneven pattern. Look for cuts or bulges.
Frame & articulation joint – Articulated rollers have a centre pivot. Check for wear by having a helper turn the steering while you watch the joint. Excessive play (>5mm) indicates worn articulation pins or bushings.
Canopy / ROPS – Inspect the Roll Over Protection Structure for cracks, bent members, or missing bolts. A damaged ROPS is a safety hazard and may violate regulations.
3. Engine & Cooling System
Cold start – The engine should start without excessive cranking. Listen for knocking or unusual noises.
Exhaust smoke – Brief black smoke is normal. Continuous blue smoke indicates burning oil; white smoke (after warm-up) suggests head gasket or injector issues.
Cooling system – Check coolant level and condition. Oily sheen or fuel smell means internal leakage. Inspect the radiator for clogged fins – common in dusty environments.
Blow-by test – With the engine at operating temperature, remove the oil filler cap. Light vapour is normal; heavy pulsing smoke indicates worn piston rings.
4. Hydraulic System
The hydraulic system powers steering, drum vibration, and sometimes propulsion.
-
Oil condition – Dip a clean stick into the hydraulic tank. Milky oil means water contamination; burnt smell indicates overheating; dark colour with particles suggests wear.
-
Leaks – Inspect hoses, fittings, cylinders, and the hydraulic pump for wetness or drips. Vibration accelerates hose failure.
-
Pump noise – A whining or knocking pump indicates cavitation or internal wear.
-
Steering response – Articulated steering should be smooth and responsive. Jerky or slow steering points to low pilot pressure or a worn steering control valve.
5. Vibration System (for Vibratory Rollers)
The vibration system is unique to rollers and a common failure point.
-
Vibration activation – Engage and disengage vibration at low engine RPM. Listen for unusual grinding or screeching.
-
Eccentric weight housing temperature – After running vibration for 5 minutes, use an infrared thermometer on the drum end plates. Excessive temperature (>90°C) indicates bearing failure or low oil.
-
Vibration frequency – If a frequency meter is available, verify that actual frequency matches the indicated value (typically 30-50 Hz for soil compaction). Off-frequency vibration reduces compaction effectiveness.
-
Vibration shut-off – When the operator releases the travel lever or applies the brake, vibration should automatically stop. A non-stopping vibration is a safety hazard.
6. Travel System (Propulsion)
Hydrostatic drive – Most rollers use hydrostatic motors on each drum or wheel.
-
Pull test – On a level surface, apply maximum travel speed. The roller should move smoothly without stuttering or surging.
-
Gradeability – On a slight incline, the roller should hold position without drifting. Excessive drift indicates worn hydrostatic pumps or motors.
-
Brakes – Apply the parking brake on a 10% slope. The roller must not move. Service brakes should stop the machine smoothly without pulling.
Differential lock (if equipped) – Engage and disengage. It should not cause unusual noise or resistance.
7. Operator Controls & Display
-
All gauges and indicators – Check engine temperature, fuel level, hydraulic oil temperature, and vibration indicators. Non-functional gauges may hide problems.
-
Vibration switch – Test both auto (trigger) and manual modes.
-
Water spray system – For asphalt rollers, the water spray system prevents material pickup. Check nozzles for clogging and pump for pressure. Non-functioning spray ruins the asphalt mat.
-
Seat and seat belt – The operator’s seat should absorb vibration (check for collapsed isolators). The seat belt must be in good condition.
8. Operational Field Test
If possible, test the roller on a job site or a test pad:
-
Compaction pattern – Run the roller over loose soil. The surface should be uniformly compacted without ridges or gaps.
-
Turning radius – The articulated joint should turn fully without interference.
-
Vibration transfer – While standing on the ground (safe distance), you should feel the ground vibrate. Weak vibration may indicate eccentric weight issues.
-
Noise levels – High-pitched squeals during operation point to bearing or pump problems.
9. Common Defects & Estimated Repair Costs (USD)
| Component | Defect | Estimated Repair Cost |
|---|---|---|
| Drum eccentric bearings | Wear, overheating | 2,000–5,000 |
| Drum shell | Cracked or dented | 5,000–12,000 |
| Hydrostatic pump | Low pressure, leakage | 4,000–9,000 |
| Hydrostatic motor | Internal wear | 3,000–7,000 each |
| Articulation pin/bushing | Excessive play | 1,500–3,500 |
| Vibration exciter seal | Oil leak | 500–1,500 |
| Water spray pump | Clogged or seized | 300–800 |
| Tyres (pneumatic roller) | Worn tread | 400–1,000 each |
| ROPS repair | Bent or cracked | 2,000–6,000 |
10. Third-Party Inspection & Certification
A professional inspection service for road rollers should provide:
-
Documentation check – Ownership, service records, hour meter integrity.
-
Structural measurements – Drum shell thickness (if ultrasonic gauge available), articulation play, frame alignment.
-
Fluid analysis – Samples of engine oil, hydraulic oil, and vibration exciter oil.
-
Vibration performance test – Frequency and amplitude verification.
-
Operational assessment – Travel, steering, braking, and spray system.
-
Photographs – All defects with measurements.
-
Final classification – “Ready to work”, “Minor repairs needed”, “Major repairs required”, or “Not recommended”.
Selecting a provider – Look for inspectors with specific heavy compaction equipment training (manufacturer courses from Dynapac, Hamm, Caterpillar, or Bomag). Ask if they offer a warranty on their certification findings.
11. Seasonal & Environmental Considerations
-
Rust and corrosion – Rollers used in coastal areas or on de-iced roads may have accelerated corrosion on the drum and chassis.
-
Water system freeze damage – Inspect the water tank, pump, and lines for cracks (from freezing).
-
Drum wrap (asphalt rollers) – Check for asphalt residue buildup. Excessive buildup indicates a non-functioning scraper or spray system.
12. Final Buyer’s Checklist for Used Rollers
-
Documentation verified and hour meter confirmed
-
Drum shell and bearings inspected
-
Vibration system tested (frequency, temperature, noise)
-
Hydrostatic drive and brakes operational
-
Articulation joint free of excessive play
-
Engine starts easily, no abnormal smoke or blow-by
-
Hydraulic system leak-free and responsive
-
Water spray system functional
-
ROPS undamaged and all safety decals present
-
Independent inspection report obtained
Conclusion
A used road roller is a significant investment in compaction equipment. The unique vibration system and hydrostatic drive require specialized inspection knowledge beyond that of standard construction machinery. By following this guide and commissioning an independent verification and certification service, buyers can avoid machines with failing drums, worn eccentric bearings, or compromised hydrostatic drives. The cost of a professional inspection is a fraction of a new drum or hydraulic pump. For more expert inspection resources on heavy equipment, stay tuned.
