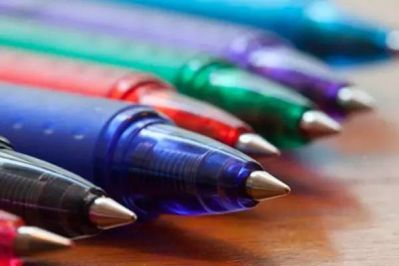

Full Analysis of Inspection and Quality Assurance Standards for Ballpoint Pen Products
In the field of stationery products, the quality control of ballpoint pens involves multiple components such as the pen body, pen tip, and pen core. This article meticulously compiles the inspection standards for ballpoint pens, covering product classification, technical requirements, factory inspection rules, marking, packaging, and storage requirements. It provides references for inspectors, purchasers, and manufacturers. These standards are also important bases for supplier factory audits and product certifications.
I. Product Classification
The specifications of ballpoint pen cores are named as 39, 67, 83, 96, 97, 101, 101-1, 106, 115, 140A, 140B types based on their length, ball diameter, and pen head diameter.
According to the different materials and structures used in the components of ballpoint pens, they can be classified into high-grade, medium-grade and ordinary-grade:
Premium grade: Metal pen holder with metal barrel, or exterior parts decorated through decorative techniques.
Premium grade product: Plastic pen tips and plastic barrel covers, with a simple structure.
Intermediate grade: Situated between the two.
During the inspection process, it is necessary to first verify whether the product grade is consistent with the requirements of the order.
II. Technical Requirements
2.1 Pen Core Performance (Should comply with Table 1)
No. Item Name Technical Requirements
1. Initial Writing Angle ≤ 47°
2. Ink Ejection Volume (mm³) Ball Bearing Diameter 0.6/0.7mm: ≥ 10; Ball Bearing Diameter 1.0mm: ≥ 12
3. Oil Spillage (pieces) ≤ 10
4. Line Drawing Length (m) 39 Type ≥ 200; 67/83/96/101-1 Type ≥ 500; 101/106/140A/140B Type ≥ 1000; 97/115 Type ≥ 2000
5. Ball Bearing Adhesion No Falling Off
2.2 Other Performance (Should comply with Table 2)
No. Item Technical Requirements
1. Pen Core Exposure Length from Pen Body (mm) When Pen Tip Diameter ≤ 2.5mm: ≤ 2.0; When Pen Tip Diameter > 2.5mm: ≥ 3.0
2. Ejection Mechanism Flexibility Flexible in use and reset conversion, ball bearing does not protrude during reset
3. Inner Diameter of Pen Body Head and Outer Diameter of Pen Tip Difference (mm) ≤ 0.2
4. Clamping Force of Pen Clip (N) High and Intermediate Grades ≥ 0.30; Ordinary Grade ≥ 0.15
5. Corrosion Resistance Chromium Plating Layer: Advanced Grade 4 minutes without base exposure, Intermediate Grade 3 minutes without base exposure; Oxide Film: Advanced Grade 40 seconds without base exposure, Intermediate Grade 20 seconds without base exposure
6. Impact Resistance Normal ink ejection during writing, no cracking, deformation or detachment of components
7. Appearance Complete components; recognizable characters and writing; smooth surface; no obvious skewing, separation of the whole pen and accessories
The above indicators are the core basis for the inspectors to conduct on-site inspections.
III. Factory Inspection Rules (AQL Sampling)
The items for factory inspection, classification of non-conformities, sampling scheme types, inspection level (IL), and acceptable quality level (AQL) are as stipulated in Table 3:
Test Item Unqualified Classification Testing Method Sampling Scheme Type IL AQL
Flexibility of the core extraction mechanism A 5.7 Second time S-4 0.25
Appearance (completeness of components) B 5.12 — — 4.0
Appearance (legible marking) B 5.12 — — 4.0
Initial writing angle B 5.1 — S-5 4.0
Ink output B 5.2 — — 4.0
Oozing B 5.3 — — 4.0
Clamping force of the pen holder B 5.9 — — 4.0 Explanation:
Class A nonconformity: Fatal defects (such as failure of the core extraction mechanism), AQL = 0.25.
Class B nonconformity: Major defect, AQL = 4.0.
Batch quality assessment: Only when the products simultaneously meet the qualified quality standards specified for both Class A and Class B, can this inspection batch be judged as qualified. During the inspection process, this rule should be strictly followed.
IV. Disposal after Inspection
Class A non-conforming products: Cannot be released for production. The production department can sort them out and resubmit for inspection; if they pass the inspection, they can be released for production, but the initial inspection of this batch shall still be regarded as non-conforming.
Class B non-conforming batch: The production department can carry out rework or downgrade processing. During the downgrade process, there should be clear Chinese labels such as "inferior product" or "substandard product" on the product.
During the factory inspection, it is necessary to verify whether the supplier has established a process for handling non-conforming products and has corresponding records.
V. Marking, Packaging, Transportation, Storage
5.1 Marking (for individual pen cartridges)
Manufacturer's name (or its abbreviation, registered trademark)
Production date or batch number
Product model
The ink cartridges suitable for archival writing should have the word "DA" on them.
5.2 Packaging
The pen case should have the product name, model, quantity, manufacturer's name and address.
The box should be accompanied by a product certificate of conformity.
The outer packaging box should have the standard number, product name, model, manufacturer's name, factory address, quality, volume, quantity inside, production date, etc. as the marking. The pictorial marking should comply with GB191 and GB6388.
5.3 Transportation
It is strictly prohibited to expose to sunlight or rain, and it should be kept away from organic gases.
5.4 Storage
Store in a dry and well-ventilated warehouse at a temperature of 0 - 40℃ and a relative humidity of no more than 80%.
Shelf life: Two years from the production date.
These requirements are also important aspects of the inspection of packaging and labels during the inspection process. At the same time, they can serve as the basis for the review of the storage environment during the factory inspection.
VI. Link between Factory Audit and Certification
Supplier Audit: The factory audit should cover the injection molding, assembly, and testing processes of the ballpoint pen manufacturer; the calibration records of testing equipment (such as marking machines, torque testers, corrosion test chambers); the qualifications of the inspectors; and the process for handling non-conforming products.
Product Certification: Export of ballpoint pens must comply with the certification standards of the target market (such as EN, ASTM, ISO 12757, etc.). During the inspection process, verify the consistency between the product labels, certificates of conformity and the certifications.
Continuous improvement: For the non-conformities identified during the inspection, a rectification report should be prepared. The inspection process should be used to close the loop, and a quality traceability file should be established.
Through the above inspection, testing, factory verification and certification processes, it is ensured that the ballpoint pen products will fully meet the requirements in terms of writing performance, structural strength, corrosion resistance and packaging identification, and will be able to comply with the market access requirements in both domestic and international markets.
