Excavator Inspection | Mechanical Excavator Inspection Standards and Methods

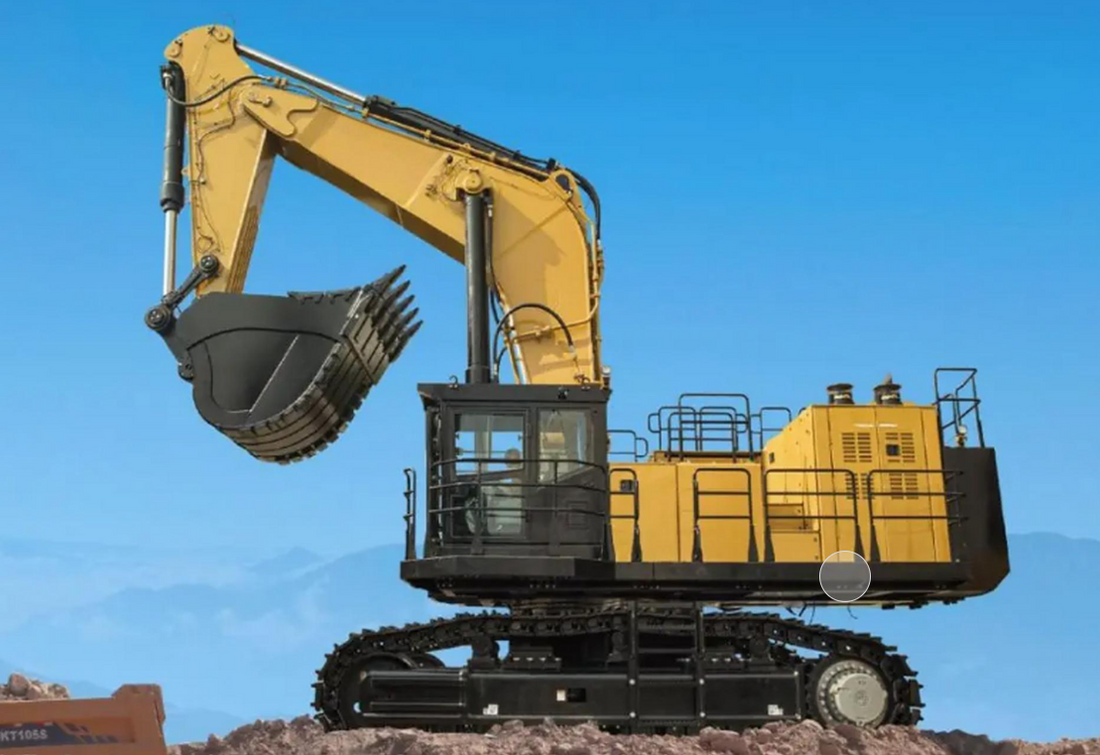

Comprehensive Analysis of Safety Inspection Standards for Mechanical Excavators

1. Safety inspection of the cab and operating space

1. Cab configuration requirements

• Mandatory configuration conditions: A cab is required for working conditions with a mass exceeding 1500kg or where there is a risk of debris splashing.

• Structural protection: The cab must have a reserved interface for the installation of protective devices to ensure that a FOPS (Falling Object Protective Structure) that complies with ISO 10262 can be installed.

• Space size: The operator's activity space must meet the ISO 3411 ergonomic standards, and the free range of leg movement must be ≥ 800mm

2. Environmental control systems

• Ventilation system: equipped with dual-mode ventilation device, normal working flow ≥43m³/h, dusty environment requires HEPA filtration

• Temperature control system: equipped with fully automatic air conditioning to ensure that the indoor temperature is maintained at 20±3℃ at an ambient temperature of -30℃~50℃

• Pressure regulation: The pressurized cab needs to maintain a positive pressure of 50Pa to prevent the intrusion of external pollutants

3. Emergency escape system

• Main exit: Net width ≥550mm, opening force ≤100N, equipped with mechanical emergency unlocking device

• Spare exit: set on the non-continuous side of the cab, can adopt the design of explosive escape window

• Escape tool: Equipped with a multifunctional escape hammer that complies with ISO 16003 standards and is stored within the driver's reach

2. Control System Safety Inspection

1. Control device safety design

• Protection against accidental touch: Dangerous function buttons require double confirmation and physical protective covers are set up

• Human-machine interface: Joystick operating stroke 120±10mm, operating force 30-50N, in line with ISO 10968 force feedback standard

• Emergency brake: Mechanical emergency stop device independent of the main control system, response time ≤ 0.3 seconds

2. Intelligent monitoring system

• Parameter display: Equipped with a 7-inch or larger LCD screen, it can display 12 key parameters such as hydraulic pressure and engine status in real time.

• Fault warning: Establish a three-level alarm system (visual + auditory + tactile feedback)

• Data recording: built-in black box function, recording the latest 200 hours of operating data

3. Special working condition control

• Automatic limit: Automatic deceleration when the boom angle exceeds the limit, electronic fence for slewing angle ±5°

• Load protection: Torque limiter dynamic accuracy ±5%, automatically cuts off dangerous action when overloaded

• Emergency descent: When the hydraulic system fails, a mechanical emergency release valve is configured

3. Critical System Security Inspection

1. Slewing brake system

• Dual-circuit braking: backup system automatically intervenes when main brake fails

• Performance requirements: braking distance ≤ 1.5m at 20rpm

• Parking brake: 15° slope maintained for 4 hours without displacement

2. Improvement system special inspection

• Wire rope safety:

  • Safety factor ≥5 (normal working conditions) or ≥6 (personnel hoisting)

  • Pulley diameter/rope diameter ratio ≥22:1

  • Configure real-time wear monitoring system

• Boom protection:

  • Anti-rebound device absorbs energy ≥ 15kJ

  • Electronic + mechanical double insurance for extreme position

3. Stability control system

• Intelligent weight distribution: automatically calculate the best weight distribution mode according to working conditions

• Tilt monitoring: 3D tilt sensor accuracy ±0.5°

• Outrigger interlock: limits the operating radius when the hydraulic outriggers are not in place

4. Inspection of special protective devices

1. Falling Object Protection System

• Top protection: can withstand 16kJ impact energy (ISO 3449 Level II)

• Front window protection: 5-layer composite glass, impact resistance level IK10

2. Hazardous area isolation

• Rotating parts: Set up laser scanning protection zone, automatically stop when intrusion occurs

• High-temperature components: Install heat shields and warning signs in areas with surface temperatures > 60°C

• High-pressure pipeline: color management + explosion-proof design, bursting pressure ≥ 4 times the working pressure

5. Stability Verification Standards

1. Static stability test

• Test conditions: including 8 extreme conditions such as maximum extension and slope operation

• Safety factor: Stable moment/overturning moment under rated load ≥ 1.5

• Test method: using the counterweight block step-by-step loading method

2. Dynamic Stability Control

• Electronic limit: Real-time calculation of center of gravity trajectory, automatic adjustment when exceeding the limit

• Speed linkage: automatically reduce the speed of movement when the operating radius increases

• Emergency mode: activates active balancing system when sudden load changes occur

VI. Key points for inspection implementation

1. Testing equipment requirements

• Torque measuring instrument accuracy ±1%

• 3D attitude recorder sampling rate ≥ 100Hz

• Hydraulic tester range 0-50MPa

2. Inspection cycle

• First inspection: 100% full inspection before leaving the factory

• Periodic inspection: every 500 hours or 6 months

• Special inspection: after overhaul or accident repair

3. Records Management

• Establish a full life cycle inspection file

• Unique identification of key components

• Electronic inspection reports are kept for ≥10 years

Special considerations for implementing this standard: Ultra-large mining excavators (working mass > 100 tons) must additionally meet the requirements of ISO 19296; intelligent equipment must pass ISO 23862 functional safety certification. Enterprises are advised to establish a 3D digital inspection platform to enable real-time upload and intelligent analysis of inspection data.
